What Size?

“Check your vehicle size, the explanations below and tables by product type”
Find your Perfect Size
×

Find your perfect fit

All you have to do is to choose your car make and model below to determine the correct size product for your vehicle.

Can't find my size?
Outdoor Camper Shield™ (outdoor camper protection)

Outdoor Camper Shield™ (outdoor camper protection)

£1,899.00

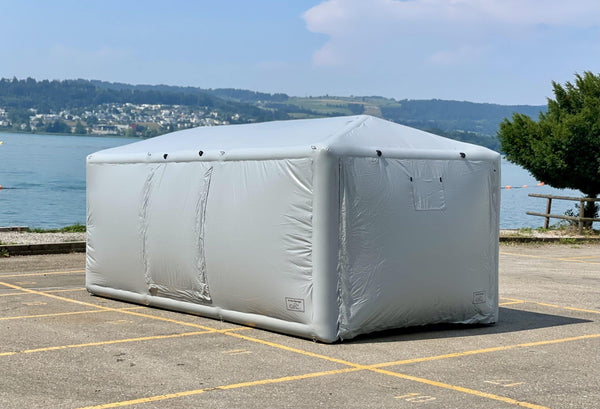

Ultimate Outdoor Car Shield™ (outdoor car cover protection)

Ultimate Outdoor Car Shield™ (outdoor car cover protection)

£2,799.00

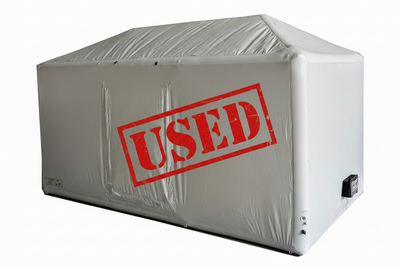

Outdoor Ultimate Camper Shield™

Outdoor Ultimate Camper Shield™

£4,099.00

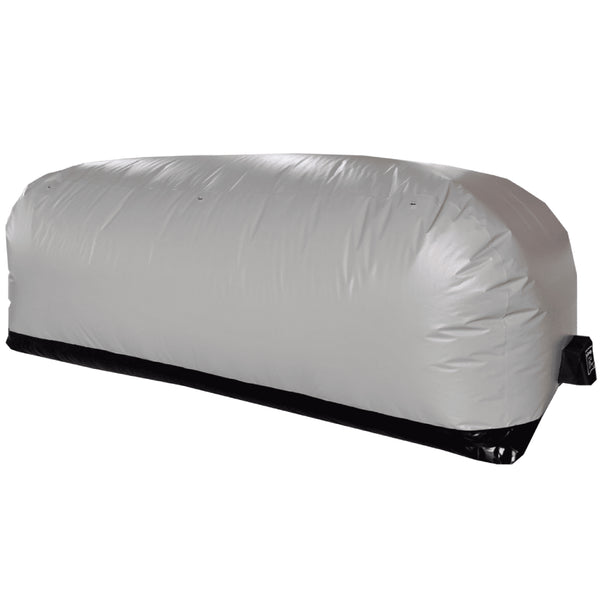

Outdoor Car Shield (outdoor car cover protection)

Outdoor Car Shield (outdoor car cover protection)

£649.00

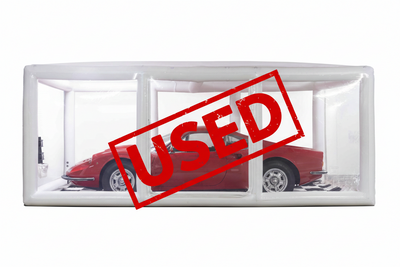

Ultimate Car Shield™

Ultimate Car Shield™

£1,349.00
Ultimate Workstation

Ultimate Workstation

£4,999.00

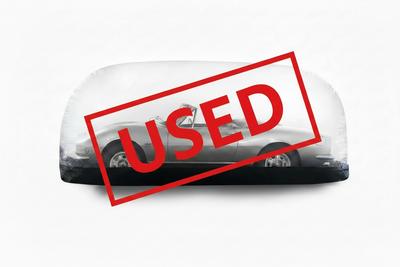

Car Shield – Indoor Car Bubble

Car Shield – Indoor Car Bubble

£499.00
Ultimate Outdoor Car Shield™ (outdoor car cover protection)

Ultimate Outdoor Car Shield™ (outdoor car cover protection)

£2,799.00
Next Gen Ultimate Outdoor Car Shield™ (outdoor car cover protection)

Next Gen Ultimate Outdoor Car Shield™ (outdoor car cover protection)

£3,399.00
Bike Shield

Bike Shield

£499.00
Ultimate Outdoor Bike Shield™

Ultimate Outdoor Bike Shield™

£1,599.00
Ultimate Bike Shield™

Ultimate Bike Shield™

£1,419.00

How to measure your vehicle

  1. 1

    Measure the longest external points of your vehicle. Consider antennae, exhaust pipes, side mirrors, accessories such as roof racks, etc.

  2. 2

    Add about 5 inches (10cm) to the Length and Width and 4 inches (10cm) to the Height. These are the minimum interior measurements of the Shield.

  3. 3

    Car/Bike Shields: Width measurements are taken from the floor footprint. Since the Shield expands "at the waist" there about 8 inches (20cm) of tolerance.

  4. 4

    Ultimate Car/Bike Shields: There needs to be a minimum of 1 foot (30cm) from the fan behind the device to allow for the circulation of air and the pump connection.

  5. 5

    For the "Ultimate" line there could be a few centimetre / 1 inch variation based on material and temperature.

Outdoor Car Shield™ (outdoor car cover protection) image 0
Inches / Centimetres
Version
Outdoor Car Shield™ (outdoor car cover protection)
Length
Width
Height
10' / 3.1m 120.1'' / 3.05 m 72'' / 1.83 m 59.8'' / 1.52 m
12' / 3.7m 144.1'' / 3.66 m 72'' / 1.83 m 59.8'' / 1.52 m
14' / 4.3m 168.1'' / 4.27 m 78'' / 1.98 m 68.1'' / 1.73 m
16' / 4.9m 191.7'' / 4.87 m 78'' / 1.98 m 68.1'' / 1.73 m
18' / 5.5m 216.1'' / 5.49 m 78'' / 1.98 m 68.1'' / 1.73 m
20' / 6.1m 240.1'' / 6.1 m 89.7'' / 2.28 m 68.1'' / 1.73 m
22' / 6.7m 263.8'' / 6.7 m 89.7'' / 2.28 m 79.9'' / 2.03 m
26' / 8.0m 315'' / 8.0 m 102'' / 2.6 m 130'' / 3.3 m

Shop now
Version
What Size?
Length
Width
Height
10' / 3.1m 120.1'' / 3.05 m 72'' / 1.83 m 59.8'' / 1.52 m
12' / 3.7m 144.1'' / 3.66 m 72'' / 1.83 m 59.8'' / 1.52 m
14' / 4.3m 168.1'' / 4.27 m 78'' / 1.98 m 68.1'' / 1.73 m
16' / 4.9m 191.7'' / 4.87 m 78'' / 1.98 m 68.1'' / 1.73 m
18' / 5.5m 216.1'' / 5.49 m 78'' / 1.98 m 68.1'' / 1.73 m
18'T / 5.5m 216.1'' / 5.49 m 78'' / 1.98 m 79.9'' / 2.03 m
20' / 6.1m 240.1'' / 6.1 m 89.7'' / 2.28 m 68.1'' / 1.73 m
Shop now
Ultimate Car Shield™ Black image 0
Version
What Size?
What Size?
Interior Length
Interior Width
Interior Height
Exterior Length
Exterior Width
Exterior Height
Inches / Centimetres
12' / 3.7m Compact 144'' / 3.66 m 70.1'' / 1.8 m 70'' / 1.78 m 152'' / 3.86 m 86.6'' / 2.2 m 78'' / 1.98 m
14' / 4.3m Slim 168.1'' / 4.27 m 84.6'' / 2.15 m 70'' / 1.78 m 176'' / 4.47 m 100.4'' / 2.55 m 78'' / 1.98 m
14' / 4.3m 168.1'' / 4.27 m 95.2'' / 2.42 m 70'' / 1.78 m 176'' / 4.47 m 111'' / 2.82 m 78'' / 1.98 m
16' / 4.9m 192.1'' / 4.88 m 95.2'' / 2.42 m 70'' / 1.78 m 200'' / 5.08 m 111'' / 2.82 m 78'' / 1.98 m
18' / 5.5m 216'' / 5.49 m 95.2'' / 2.42 m 70'' / 1.78 m 224'' / 5.69 m 111'' / 2.82 m 78'' / 1.98 m
20' / 6.1m 240'' / 6.09 m 95.2'' / 2.42 m 70'' / 1.78 m 247.6'' / 6.29 m 111'' / 2.82 m 78'' / 1.98 m
22' / 6.7m 263.8'' / 6.7 m 95.2'' / 2.42 m 70'' / 1.78 m 271.7'' / 6.9 m 111'' / 2.82 m 78'' / 1.98 m
Shop now
Ultimate Outdoor Car Shield™ (outdoor car cover protection) image 0
Inches / Centimetres
VERSION
What Size?
EXTERIOR DIMENSIONS Feet (LxWxH)
INTERIOR DIMENSIONS Feet (LxWxH)
EXTERIOR DIMENSIONS
METERS (LxWxH)
INTERIOR DIMENSIONS METERS (LxWxH)
16' / 4.9m Compact 16.7' x 8.5' x 7' (peak 7.7') 16' x 7.5' (entrance height 5.6') 5.1 x 2.65 x 2.2 (Peak 2.35) 4.9 x 2.15 (Entrance height 1.70)
16' / 4.9m 16.7' x 9' x 7' (peak 10') 16' x 8' (entrance height 6.5') 5.1 x 2.8 x 2.2 (Peak 3.0) 4.9 x 2.3 (Entrance height 1.98)
18' / 5.5m 18' x 9' x 7' (peak 10') 17.3' x 8' (entrance height 6.5') 5.5 x 2.8 x 2.2 (Peak 3.0) 5.3 x 2.3 (Entrance height 1.98)
20' / 6.1m 20' x 9' x 7' (peak 10') 19' x 8' (entrance height 6.5') 6.1 x 2.8 x 2.2 (Peak 3.0) 5.8 x 2.3 (Entrance height 1.98)
22' / 6.7m 22' x 10' x 9' (peak 11' ) 21' x 8.3' (entrance height 7.8') 6.7 x 3.0 x 2.7 (Peak 3.4) 6.4 x 2.5 (Entrance height 2.3)
26' / 8.3m 27' x 10.5' x 12' peak 26' x 8.5' (entrance height 10') 8.3 x 3.2 x 3.6 peak 8.0 x 2.6 x 3.3 (Entrance height 3.1)
29.5' / 9.3m 30.5' x 12' x 13' peak 29.5' x 10' (entrance height 10') 9.3 x 3.6 x 4.0 peak 9.0 x 3.0 x 3.3. (Entrance height 3.1)
31' / 9.8m 32' x 12' x 13' peak 31' x 10' (entrance height 10') 9.8 x 3.6 x 4.0 peak 9.5 x 3.0 x 3.3 (Entrance height 3.1)
Shop now
Next Gen Ultimate Outdoor Car Shield™ (outdoor car cover protection) image 3
Inches / Centimetres
SKU
PRODUCT NAME
VERSION
EXTERIOR DIMENSIONS Feet (LxWxH)
INTERIOR DIMENSIONS Feet (LxWxH)
EXTERIOR DIMENSIONS
METERS (LxWxH)
INTERIOR DIMENSIONS METERS (LxWxH)
FRAME COLOR
FLOOR COLOR
WEIGHT
ITGNEXTGUCS18ODG Next Gen Ultimate Outdoor Car Shield 18 18.4’ x 9.8’ x peak 8.5' 17.5’ x 8.2’ (Entrance width: 7.4' top, 7.7' middle 7.9' bottom) x 5.6' Entrance height 5.6 x 3.0 x 2.58 Peak 5.35 x 2.5 (Entrance width: 2.25 top 2.35 middle 2.40 bottom) x 1.70 Entrance height Grey Black 84 kg / 185 lbs
ITGNEXTGUCS21ODG Next Gen Ultimate Outdoor Car Shield 21 21.0’ x 9.8’ x peak 8.5' 20.0’ x 8.2’ (Entrance width: 7.4' top, 7.7' middle 7.9' bottom) x 5.6' Entrance height 6.4 x 3.0 x 2.58 Peak 6.1 x 2.5 (Entrance width: 2.25 top 2.35 middle 2.40 bottom) x 1.70 Entrance height Grey Black 90 kg / 196 lbs
Shop now
Outdoor Camper Shield™ (outdoor camper protection) image 0
Inches / Centimetres
Version Length  Width Height
26' / 8.0m 315'' / 8.0 m 102'' / 2.6 m 130'' / 3.3 m
Shop now
